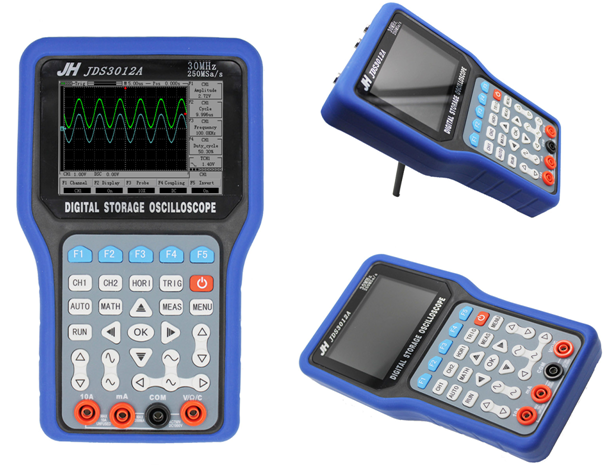

JDS3012A
Time：2017-08-10 17:26:27 Visit：number
-
Product information
-
oscilloscope
-
Max Sampling Rate : 250MSa/S
-
Channel : 1 analog channel + 1 digital channel + signal generator + multimeter + recorder
-
Bandwidth : 30MHz
-
Vertical Resolution : 8bit
-
Input range : 10mV - 5V; x1 100mV - 50V; x10 1V - 500V; x100 (1,2,5STEP)
-
vertical Accuracy: +/- 3%
-
Impedance : 1MΩ 25pF
-
Coupling : DC\AC
-
Display mode : YT
-
Input Voltage :40V(x1);400V(x10);4000V(x100)
-
Time Range : 10ns-50ms(1,2,5 step) 100ms-5s(Scan)
-
Storage depth : 16k
-
Trigger mode: Auto, Normal, Single
-
Trigger Type: Rise, Down
-
automatic detection ：50Hz-60MHz
-
Measurements: peak-to-peak, duty cycle, frequency, period
-
Cursor: time, voltage
-
Screen: 4.3 inch 16 bit true color TFT 400 * 272
-
Multimeter
-
Full scale reading: 6000 count
-
DC voltage ： 60.00mV, 600.0mV, 6.000V, 60.00V, 600.0V, 1000V.
-
AC voltage ： 60.00mV, 600.0mV, 6.000V, 60.00V, 600.0V, 750V.
-
DC ： 600.0µA/6000µA, 60.00mA/600.0mA, 6.000A/10.00A
-
AC ： 600.0µA/6000µA, 60.00mA/600.0mA, 6.000A/10.00A
-
Resistance ：600.0Ω, 6.000kΩ, 60.00kΩ, 600.0kΩ, 6.000MΩ, 60.00MΩ.
-
Capacitance ：40.00nF, 400.0nF, 4.000µF, 40.00µF, 400.0µF, 4000µF
-
Diode ： 0V~2.0V.
-
On-off detection: 600.0Ω gear detection, less than 30Ω when the sound
-
Signal generator
-
Frequency：0Hz - 10MHz
-
Duty cycle ：0% - 100&
-
Amplitude ：100mV - 4V
-
Offset ：+\- 0V - 2V
-
Serial port center
-
Baud rate ：115200 - 1200
-
Data bits ：8，9
-
Check Digit：NO ，ODD， EVEN
-
Stop bit ：1，0.5，2，1.5
-
Into the system ： 10， 16
-
Recorder
-
Time Base ： 100ms - 5s
